Product Details:
|
|
Place of Origin: | CN |
---|---|
Brand Name: | GUKE |
Certification: | CN90001 |
Model Number: | RAMMER G80 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 kit |
Price: | Negtiation |
Packaging Details: | PP bag inside Carton box outside |
Delivery Time: | 3-7 days after payment |
Payment Terms: | T/T, Western Union,Paypal,Xtransfer |
Supply Ability: | 200 Kits Per Week |
Detail Information |
|||
Part No: | RAMMER G80 140MM | Part Name: | Hydrualic Breaker |
---|---|---|---|
Material: | PU+PTFE+NBR+NY | Condition: | 100% New |
OEM: | Accpetable | ODM: | Accpetable |
Feature: | High Cost Performance Heat Resistance Oil Resistance Presure Resistance | Appliion: | RAMMER G100 Hydrualic Breaker |
Highlight: | High Cost Performance Hydraulic Breaker Seal,140MM Hydraulic Breaker Seal,RAMMER G80 Hydraulic Breaker Seal |
Product Description

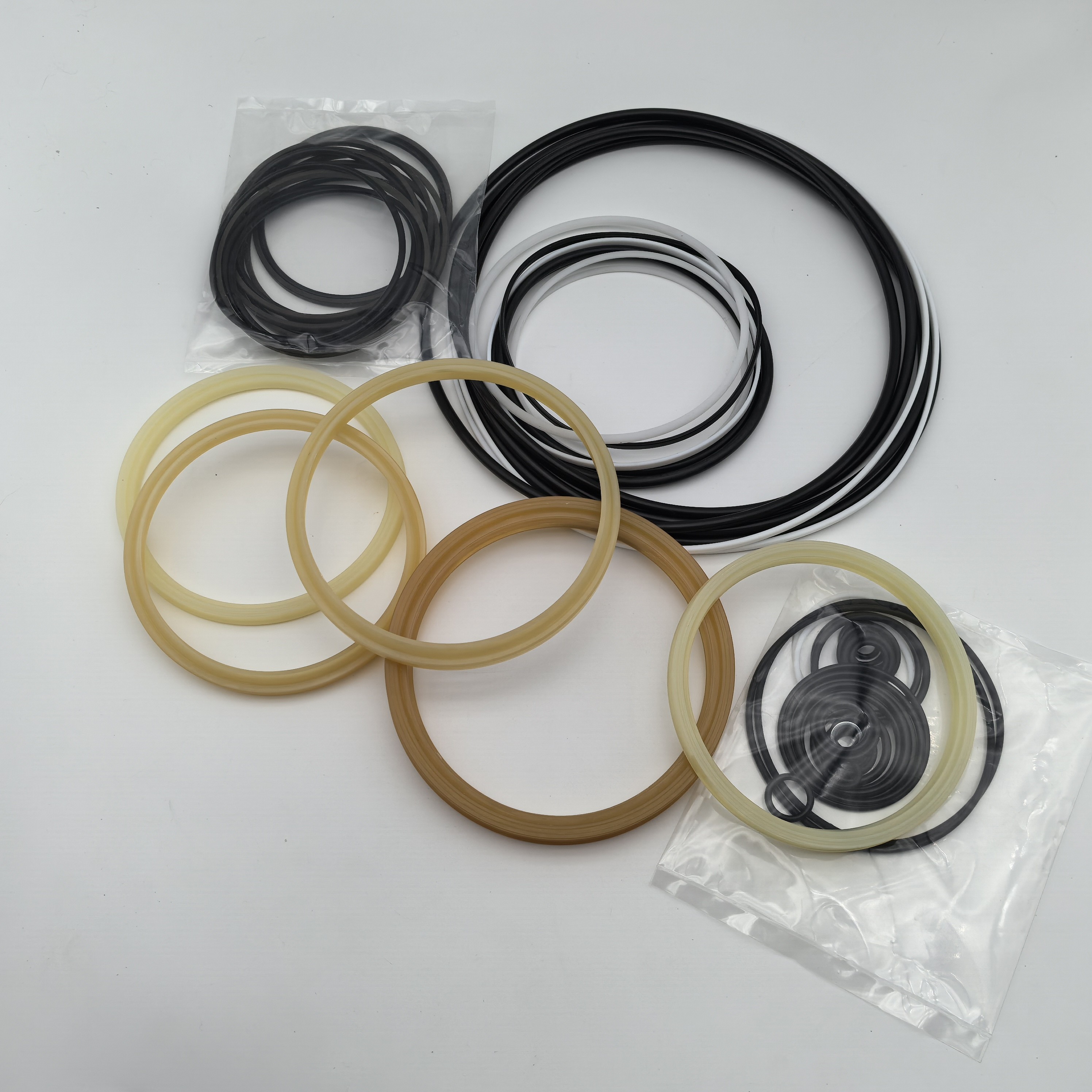

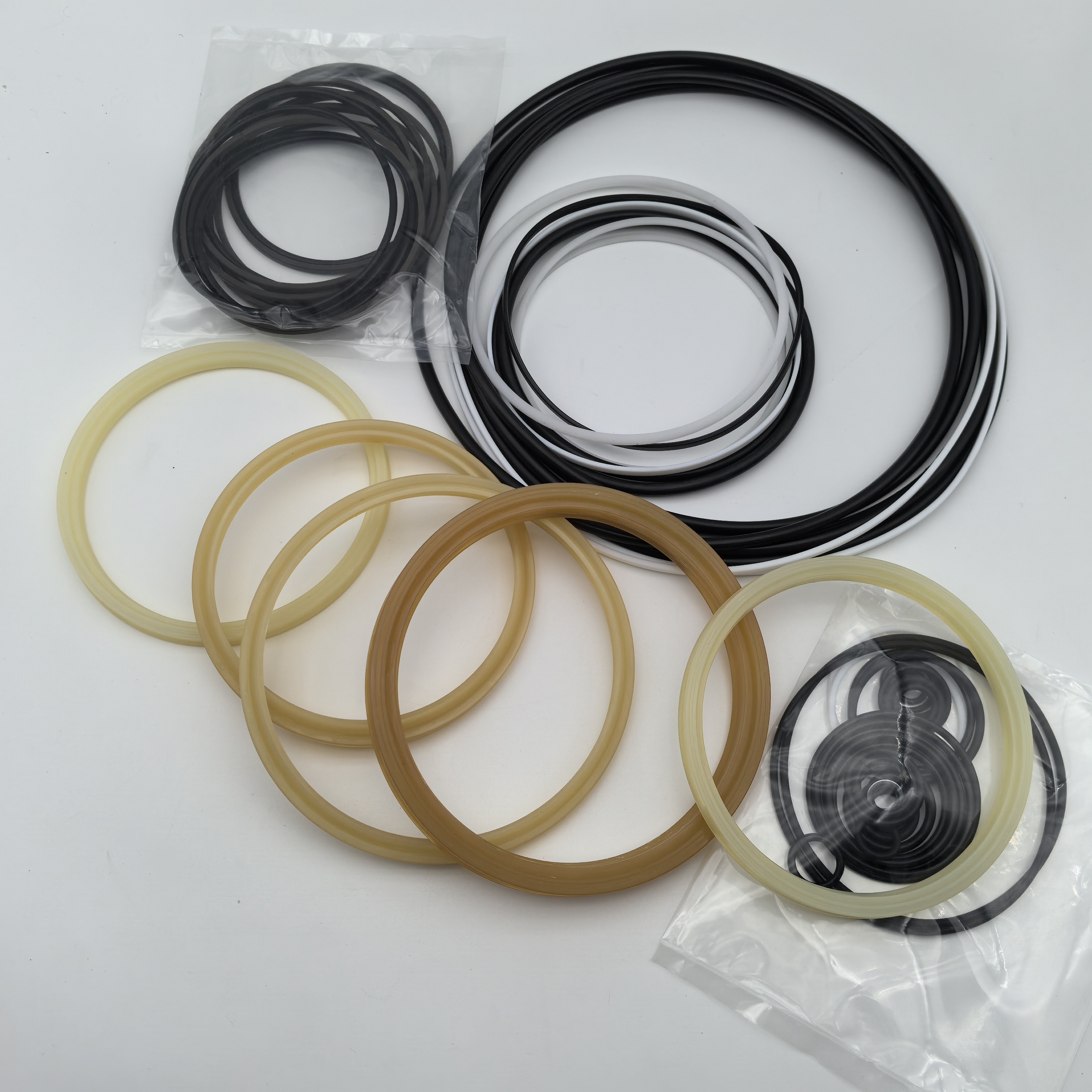

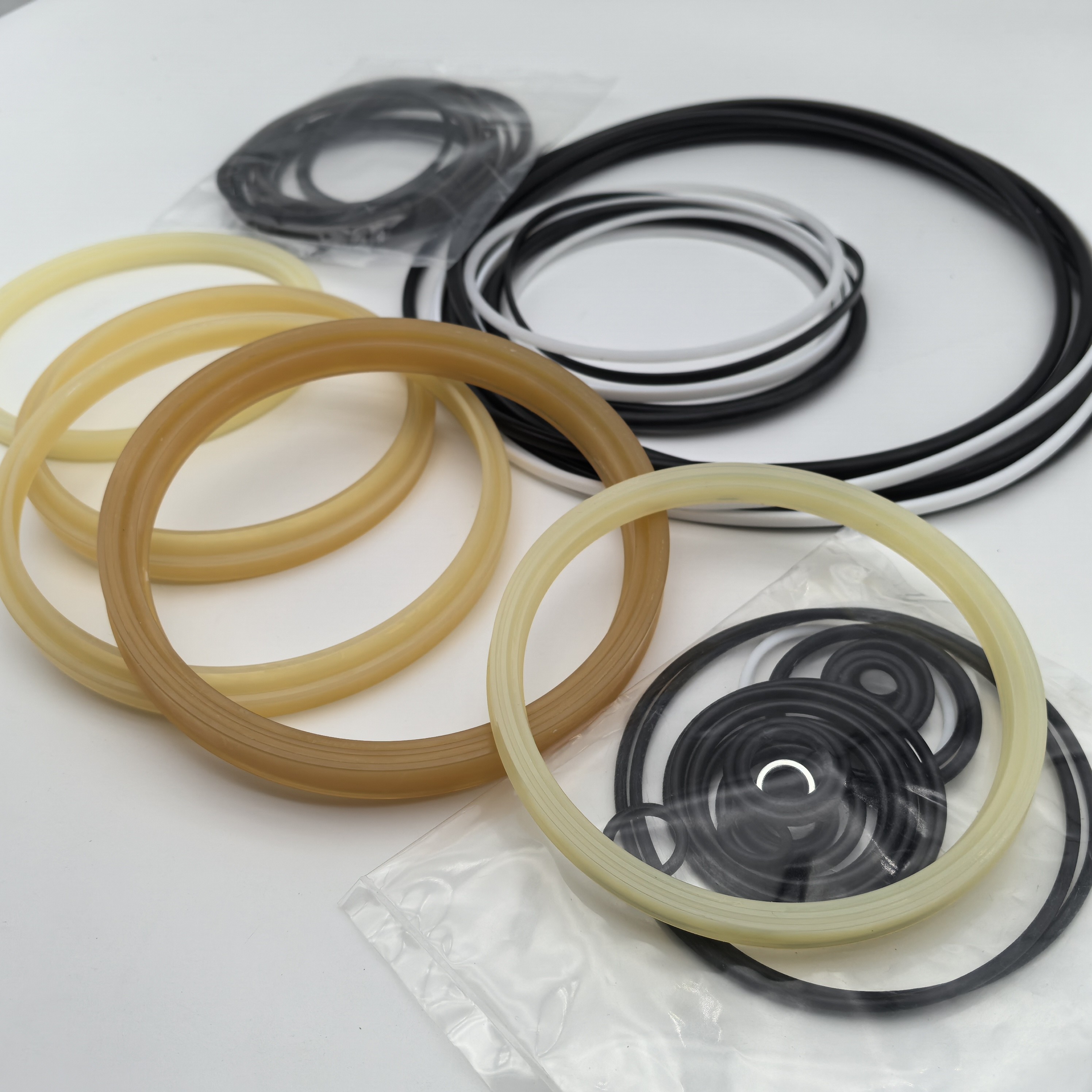

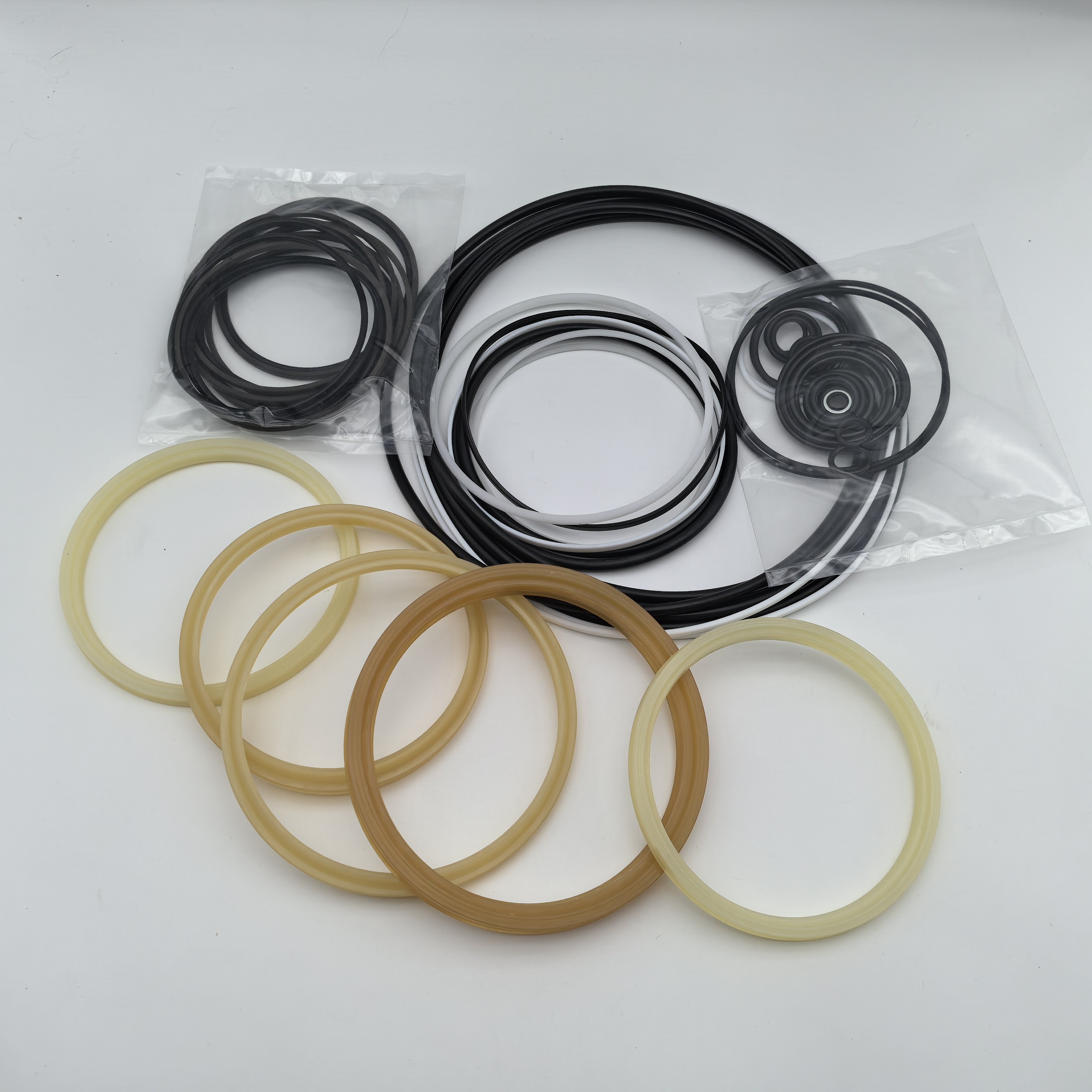

Hydrualic Breaker Seal RAMMER G80 140MM
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as ,Parker,SKF,Hallite,PET ,YCC,NAK and so on .
Product Overview | |
Name: | RAMMER Hydrualic Breaker Seal G80 |
Condition | 100% New |
Material: | PU + PTFE + NY + NBR |
Machine Model: | Hydrualic Breaker Seal RAMMER G80 |
Part Number: | |
Size: | Standard Size Custom Size |
Hardness: | 92degree |
Temparature: | -30 Degree To 120 Degree |
Feature: | Oil Resistance,Heat Resisitance,Pressure resisitant |
Certifiion: | ISO 9001 |
Raw Material: | HUNTSMAN of German + ZEON of Japan |
OEM: | Accpetable |
vailablity: | In Stock |
Shipping: | Express,By Air,By Sea |
BODY PARTS G80N | |||||
lfem | Description | Part no. | Specification | Note | Qty |
7 | Valve body (incl.parts 31,34,35,36 and 63) | 101287 | 1 | ||
8 | Cylinder | 104390 | 1 | ||
9 | Piston | 101443 | 1 | ||
10 | Seal carrier (incl.parts 33,50 and 60) |
101626 | 1 | ||
31 | Breather | 400662 | 1 | ||
33 | Breather (incl.part 33.2) | 101700 | 1 | ||
33.2 | O-ring | 901173 | 1 | ||
34 | Flange plug | 90401 | R3/4 | 1 | |
35 | Flange plug | 90444 | R3/8 | 5 | |
36 | Flange plug | 90403 | R1/4 | 1 | |
40 | Wiper | 913001 | D135 | 1 | |
41 | Seal | 903325 | D135 | 1 | |
42 | Seal | 903324 | D119 | 2 | |
43 | Wiper | 901160 | D119 | 1 | |
44 | O-ring | 90076 | D229 | 2 | |
45 | Seal | 41140 | D239 | 2 | |
46 | Seal | 41350 | D130 | 1 | |
51 | O-ring | 901124 | D17 | 4 | |
53 | Parallel pin | 90317 | 16m6x50 DIN6325 | 2 | |
56 | Lock washer | 91012 | M12 NORD-LOCK | 1 | |
60 | Hex.socket screw | 91041 | M12x60-8.8 DIN 912 | 1 | |
63 | Plug | 41658 | 1 | ||
*)Are included in seal set |
R060012 | |||||
Item | Description | Part no. | Specification | Note | Qty |
Kit | Seal set(incl.parts 1-27) | 102255 | 1 | ||
1 | O-ring | 901173 | D27 | 1 | |
2 | Wiper | 913001 | D135 | 1 | |
3 | Seal | 903325 | D135 | 1 | |
4 | Seal | 903324 | D119 | 2 | |
5 | Wiper | 901160 | D119 | 1 | |
6 | O-ring | 90076 | D229 | 3 | |
7 | Seal | 41140 | D239 | 2 | |
8 | Seal | 41350 | D130 | 1 | |
9 | Seal | 90020 | D105 | 6 | |
10 | Seal | 902668 | D110 | 6 | |
11 | O-ring | 90005 | D105 | 2 | |
12 | O-ring | 90000 | D24 | 1 | |
13 | O-ring | 901124 | D17 | 4 | |
14 | O-ring | 94035 | D13 | 4 | |
15 | Seal | 41357 | D124 | 1 | |
16 | Usit-ring | 90056 | U8.7-14-1 | 1 | |
17 | O-ring | 901026 | D14 | 1 | |
19 | O-ring | 90083 | D60 | 1 | |
20 | Seal | 41374 | D55 | 1 | |
21 | Seal | 41375 | D50 | 1 | |
22 | O-ring | 90031 | D46 | 1 | |
23 | O-ring | 90007 | D44 | 1 | |
24 | O-ring | 94091 | D39 | 1 | |
25 | O-ring | 901186 | D10 | 1 | |
26 | Usit-ring | 901187 | D18 | 1 | |
27 | O-ring | 910006 | D23 | 1 |
