Detail Information
Product Description

Detail Information
Part No:	3363121222	OEM:	Accpetable
Feature:	Pressure Resistance Temperature Resistance	ODM:	Accpetable
Model:	Atlas HB4100	Hardness:	70degree-95degree
Package:	PP Bag,Carton	Shipping Method:	Sea, Land And Air Transport

Product Description

The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.

We use high quanlity raw materials from Gemany and Japen.

We also sell other brand of seals such as NOK,Parker,SKF,Hallite,PET ,YCC,NAK and so on .

Product Overview
Name:	Atlas Copoc Epiroc Hydraulic Hammer HB4100 Repair Seal Kit
Condition	100% New
Material:	PU + PTFE + NY + NBR
Machine Model:	Atlas Copoc Epiroc Hydraulic Breaker HB4100
Part Number:	3363121222
Size:	Standard Size Custom Size
Hardness:	90degree
Temparature:	-30 Degree To 120 Degree
Feature:	Oil Resistance,Heat Resisitance,Pressure resisitant
Certification:	ISO 9001
Raw Material:	HUNTSMAN of German + ZEON of Japan
OEM:	Accpetable
vailablity:	In Stock
Shipping:	Express,By Air,By Sea

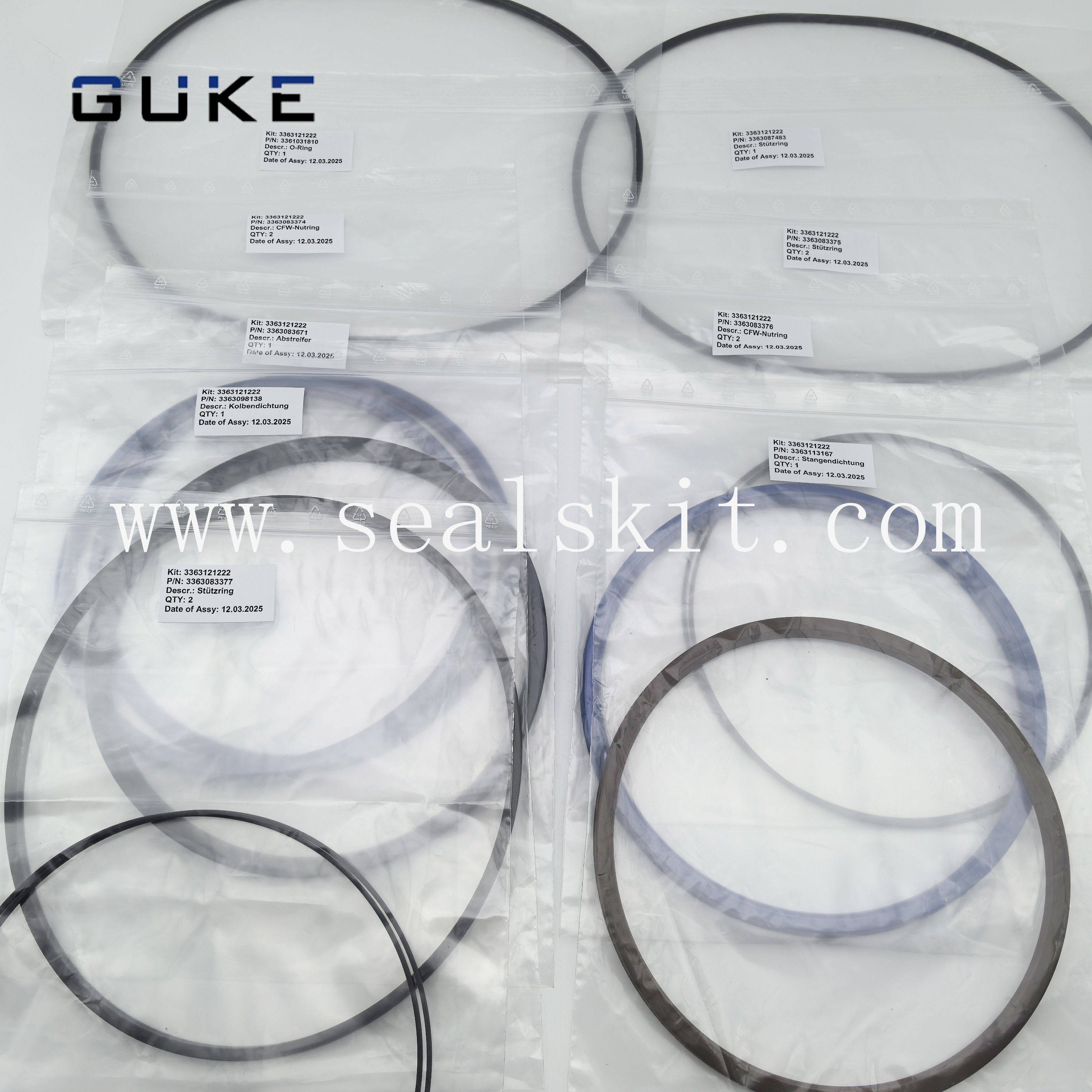

Atlas Copoc Epiroc Hydraulic Hammer Repair Seal Kit HB4100 3363121222 0

Parts List:

Item	PartNo.	Name	QTY
KIT	3363121222	Sealkit	1
103	3360314375	O-ring	1
108	3360314370	O-ring	1
113	3363123253	Seal	1
115	3360478171	O-ring	1
120	3361031810	O-ring	1
121	3363087483	Back-upring	1
138	3360314373	O-ring	2
145(146-147)	3361850422	Sealkit	2
146		O-ring	2 2
147		Back-upring	2 2
151	3363121175	Seal	1
152	3363121176	Back-upring	2
153	3360314453	O-ring	1 1
164	3360314364	O-ring	1 1
165	3360328046	Back-upring	1
182	3360478426	Threadedplug	1
183	3360175125	O-ring	1
203	3363113167	Seal	1
204	3363098138	Seal	1
290(291-292)	3363083593	Sealkit	2
291		Seal	1
292		Back-upring	1
301	3362267583	Stircomatic	2
305	3363083671	Wiper	1
306	3362267585	Seal	6
307	3362267589	Seal	8
390(391-392)	3363083594	Sealkit	2
391		Seal	1
392		Back-upring	1
401	3362267586	Seal	1
KIT	3363091732	Sealkitforswiveljointforautomaticlubricationsystem	1
KIT	3363116082	Plasticpartskit	1
2	3361356789	Elasticpad	1
3	3361356925	Shockabsorber	2
4	3363115360	Guideplate	2
5	3363115361	Guideplate	2
6	3363086237	Plate	1
KIT	3363113270	Tensioningboltkit	1
191		Tensioningbolt	2
192	3363093653	Washer	2
487	3363085321	Threadedinsert	2
KIT	3363113148	DustProtectorkit	1
11	3363070665	Floatingring(tribolid)	1
12	3363033801	Counterring	1
13	3363033733	Guidering	1
14	3363112602	Bolt	2 2
15	3361854363	Lockingbush	2 2
KIT	3363116083	Noiseprotectionkit	1
34	3363111912	Plug	11
36	3363115515	Cover	2
40	3363092697	Cover	1
KIT	3363094377	Lowerbreakerpartkit(bronze)	1
402	3361331529	Retainerbar	2
403	3362261540	Bolt	2
404	3362262921	Plug	4
482	3363069083	Impactring	1
483	3363069137	Wearbush	1
484	3363088511	Wearbush(bronze)	1
485	3361854347	Bolt	2
486	3361854363	Lockingbush	2
488	3362260433	Lockingbush	2
-	3315038100	Biochiselpastecartridge,12×400g(0.88Ibs)	1
-	3361852175	Testgaugelowerwearbush	1
KIT	3363103408	Lowerbreakerpartkit(steel)	1
402	3361331529	Retainerbar	2
403	3362261540	Bolt	2
404	3362262921	Plug	4
482	3363069083	Impactring	1
483	3363069137	Wearbush	1
484	3363088653	Wearbush(steel)	1
485	3361854347	Bolt	2
486	3361854363	Lockingbush	2
488	3362260433	Lockingbush	2
-	3315038100	Biochiselpastecartridge,12×400g(0.88Ibs)	1
-	3361852175	Testgaugelowerwearbush	1
KIT	3363094378	Lowerbreakerpartkit(bronze)forDustProtectorversion	1
18	3363088651	Baseforwiper	1
19	3363034265	Wiper	1
402	3361331529	Retainerbar	2
403	3362261540	Bolt	2
404	3362262921	Plug	4
482	3363069083	Impactring	1
483	3363069137	Wearbush	1
484	3363088511	Wearbush(bronze)	1
485	3361854347	Bolt	2
486	3361854363	Lockingbush	2
488	3362260433	Lockingbush	2
-	3315038100	Biochiselpastecartridge,12×400g(0.88Ibs)	1
	3361852175	Testgaugelowerwearbush	1
KIT	3363103409	Lowerbreakerpartkit(steel)forDustProtectorversion	1
18	3363088651	Baseforwiper	1
19	3363034265	Wiper	1
402	3361331529	Retainerbar	2
403	3362261540	Bolt	2
404	3362262921	Plug	4
482	3363069083	Impactring	1
483	3363069137	Wearbush	1
484	3363088653	Wearbush(steel)	1
485	3361854347	Bolt	2
486	3361854363	Lockingbush	2
488	3362260433	Lockingbush	2
-	3315038100	Biochiselpastecartridge,12×400g(0.88Ibs)	1
-	3361852175	Testgaugelowerwearbush	1
KIT	3363103487	Fasteningscrewkit	1
161	3363113101	Fasteningscrew	4
162	3363100049	Washer	4
172	3361031546	Threadedinsert	4
KIT	3363089850	Accumulatorrepairkit	1
-	3361329022	Diaphragm	1
-	3360332259	Fillingscrew	1
-	3360314460	O-ring	1
-	3361335025	Protectivecap	1
-	3360314364	O-ring	1
-	3360328046	Back-upring	1

Parts Application:

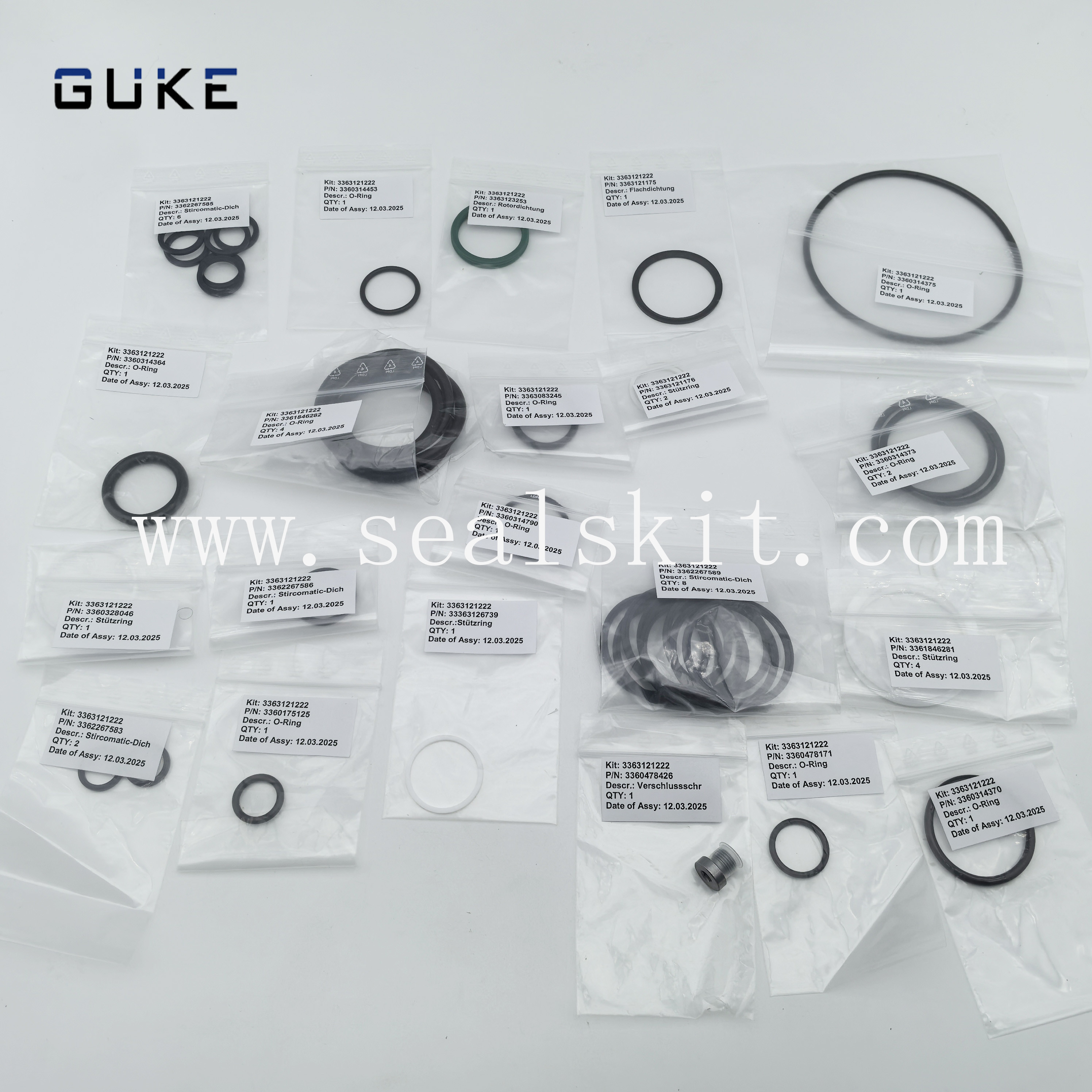

Atlas Copoc Epiroc Hydraulic Hammer Repair Seal Kit HB4100 3363121222 1

Atlas Copoc Epiroc Hydraulic Hammer Repair Seal Kit HB4100 3363121222 2

Tag:

Product Details:
Place of Origin:	China
Brand Name:	GUKE
Certification:	ISO 9001
Model Number:	Atlas Copco HB4100
Payment & Shipping Terms:
Minimum Order Quantity:	1 kitS
Price:	Negotiate
Packaging Details:	PP bag inside ,Carton box outside
Delivery Time:	3-7 days after payment
Payment Terms:	T/T ,Western Union ,Paypal, Xtransfer
Supply Ability:	500kits per week
