Excavator Cylinder HBY Rod Buffer Seal PU NY ISO 9001

Product Details:
Place of Origin: CN
Brand Name: GUKE
Certification: ISO9001
Model Number: HBY Buffer Ring
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Price: Negotiable
Packaging Details: PP bag inside ,Carton box outside
Delivery Time: 3-7 Days after payment
Payment Terms: T/T, Western Union
Supply Ability: 200 pcs per week
  • Detail Information
  • Product Description

Detail Information

Material: PU NY Color: Blue Ivory Blue
Size: Standard Custom Size Feature: Heat Resisitance Pressure Resisitant Oil Resistant
OEM: Available Application: Excavator Cylinder Rod Seal
High Light:

Excavator rod buffer seal

,

PU NY Hydraulic Rod Seal

,

90degree rod buffer seal

Product Description

    HBY Rod Seal Buffer Seal





The HBY hydraulic buffer seal, mounted on the pressure side of the piston rod seal, is designed to improve the durability of the piston rod seal by venting the pressure back to the system side. The main parts of the buffer seal are the static lip, dynamic lip, radial slots, and radial channels. The static lip of the seal is optimized with high flexibility to relieve the interstage pressure. The dynamic lip can minimize the friction and backpressure under high-pressure condition. The radial slots of the buffer seal are designed to reduce the risk of blow-by. The radial channels, a vital element in the whole seal structure, facilitate back-pumping and relieve the pressure.



The hydraulic buffer seal is always used together with other rod seals, such as U-cup seal or Y seal, building a “tandem configuration.” The main functions of the buffer seal in the hydraulic system include several aspects. First, it buffers the shock pressure or pressure fluctuations produced by the piston rod of the hydraulic cylinder, easing the backpressure. Second, the seal helps cooling down the temperature, prevents the overheat from transmitting to the seal, and reducing heat generated from the piston rod seal during operation. Third, it reduces the friction resistance caused by the piston rod seal in the hydraulic cylinder. In general, the buffer seal provides adequate lubrication to the piston rod seal or other main seals, and it can enhance the gap extrusion resistance. Thereby, it can extend the durability of the seal element.



In harsh conditions, machines or equipment often encounter dramatic swings in pressure, shock loads in temperature or side loads which affect the operation of the hydraulic system. This factor presents a significant and demanding challenge for the buffer seal. Fortunately, GUKE Seals can optimize the buffer seals to match customers’ specific hydraulic application needs. The buffer seals GUKE Seals offers are especially suitable for heavy-duty, agricultural machinery, mobile, and industrial hydraulic applications, including bulldozers, earth moving equipment, cranes, dump trucks, motorized shovels, boom extension cylinders, wheel loaders, etc. HBY seals inGUKE Seals are designed referring to the designs and applications of NOK’s HBY, DZ’s D-10 series.



The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.

    We use high quanlity raw materials from Gemany and Japen.

    We also sell other brand of seals such as NOK,Parker,SKF,Hallite,PET ,YCC,NAK and so on .

Product Overview
Name: Rod Seal Buffer Ring
Condition 100% New
Material: PU + NY
Size: Standard Size or Custom Size
Application: Excavator Cylinder
Hardness: 90degree
Temparature: -35 Degree To 130 Degree
Feature: Oil Resistance,Heat Resisitance,Durable,Pressure Resisitant
Certification: ISO 9001
Raw Material: HUNTSMAN of German
OEM: Accpetable
vailablity: In Stock
Shipping: Express,By Air,By Sea

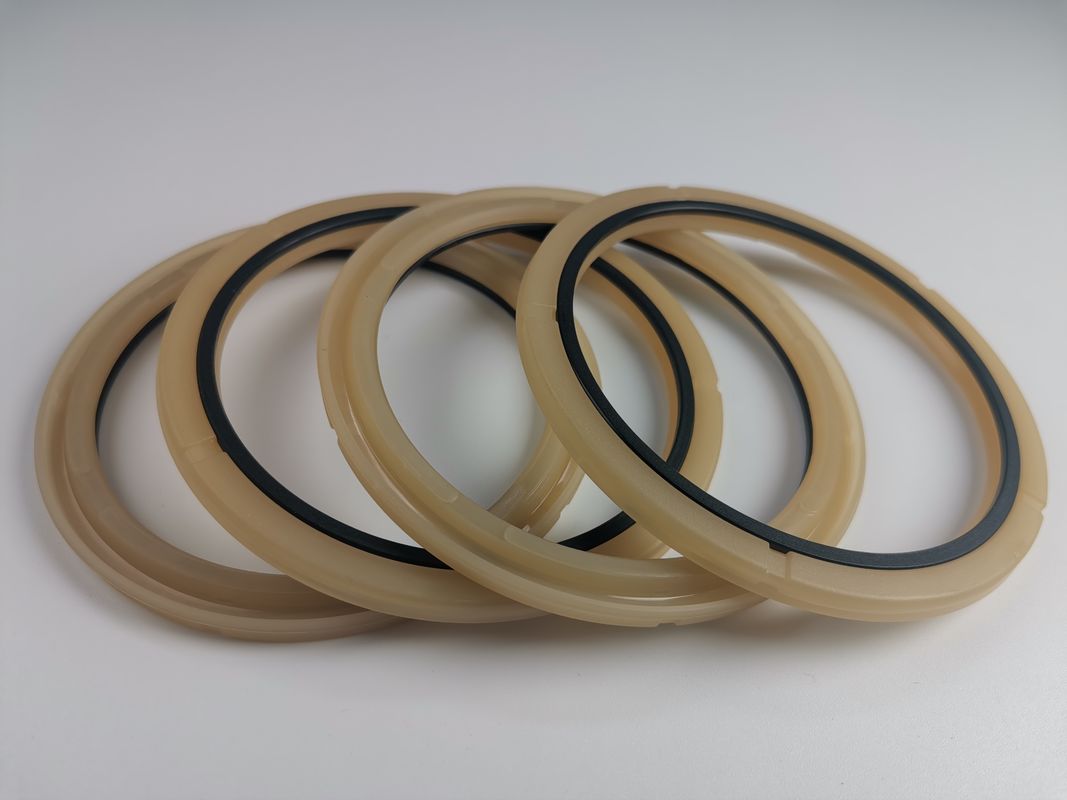

Excavator Cylinder HBY Rod Buffer Seal PU NY ISO 9001 0

Excavator Cylinder HBY Rod Buffer Seal PU NY ISO 9001 1

Application Chart:

Excavator Cylinder HBY Rod Buffer Seal PU NY ISO 9001 2

Regular specifications
NO SIZE NO SIZE
1 40*55.5*6 15 110*125.5*6
2 45*60.5*6 16 115*130.5*6
3 50*65.5*6 17 120*135.5*6
4 55*70.5*6 18 125*140.5*6
5 60*75.5*6 19 130*145.5*6
6 65*80.5*6 21 135*150.5*6
7 70*85.5*6 20 140*155.5*6
8 75*90.5*6 21 150*165.5*6
9 80*95.5*6 22 160*175.5*6
10 85*100.5*6 23 170*185.5*6
11 90*105.5*6 24 175*190.5*6
12 95*110.5*6 25 180*195.5*6
13 100*115.5*6 25 190*205.5*6
14 105*120.5*6 26 200*215.5*6



Why Choose Us?

  • We are manufacturers and product direct sales.
  • Excellent and reliable production equipment and inspection equipment.
  • Many years of industry practical experience.
  • Excellent product research and development team.
  • Professional production technology.
  • High quality raw materials from Germany and Japan.
