Guangzhou Guke Construction Machinery Co., Ltd.

UDO Cylinder Rod Seal Excavator Spare Parts Sky blue

Product Details:
Place of Origin: CN
Brand Name: GUKE
Certification: ISO9001
Model Number: UDO IDI with Oring
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: PP bag inside ,Carton box outside
Delivery Time: 3-7 Days after payment
Payment Terms: T/T, Western Union
Supply Ability: 500 pcs per month
  • Detail Information
  • Product Description

Detail Information

Material: PU+NBR Color: Sky Blue
OEM: Available Feature: Heat Resisitance Pressure Resisitant
Application: Excavator Cylinder Rod Size: Standard Custom Size
High Light:

UDO Excavator Spare Parts

,

92degree Excavator Spare Parts

,

cylinder rod seal Sky blue

Product Description

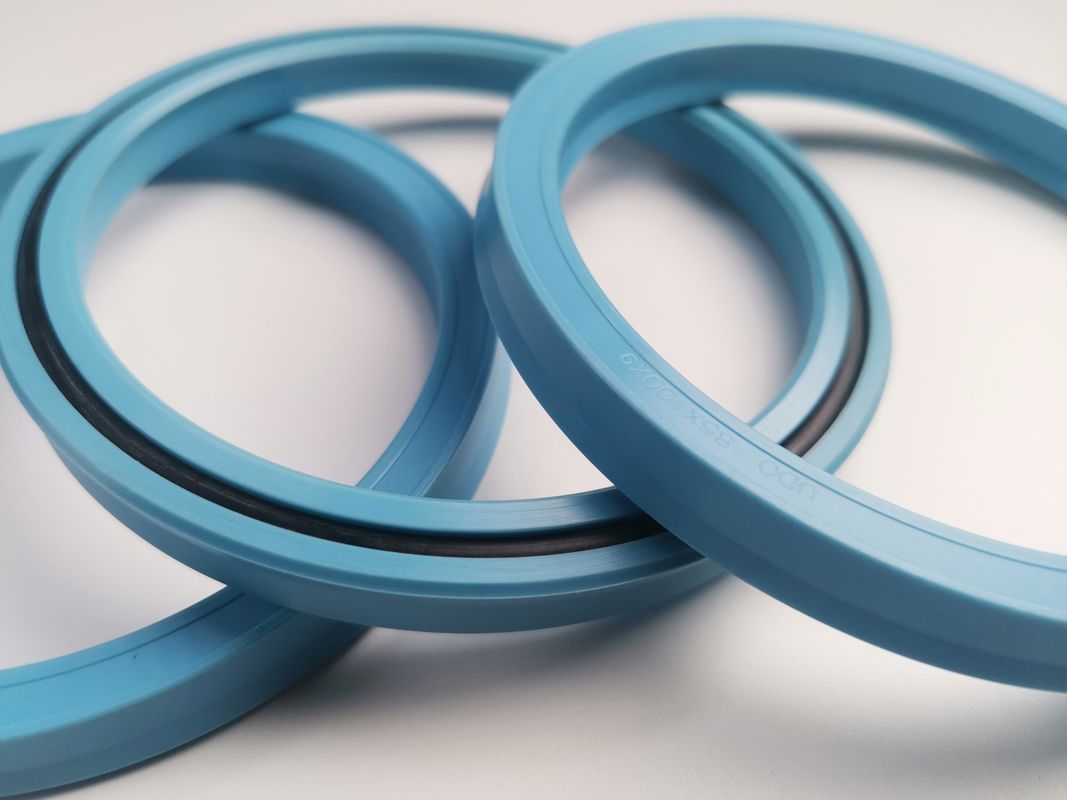

    UDO Cylinder Rod Seal



Ideal For Hydraulic / Pneumatic Cylinders.



Hydraulic systems are sealed using a combination of specialized seals. The main tasks of hydraulic seals are to retain hydraulic fluids, to exclude solid or liquid contamination, maintain rod and pistons alignment and to maintain the hydraulic pressure. In extreme cases seals need to withstand high pressures, extreme temperatures and transverse forces within the cylinder. Thus in application, the function of Hydraulic Seals goes far beyond preventing fluid leakage. Hydraulic piston seals prevent fluid from flowing across the cylinder head whereas the Rod seals prevent leakage of fluid from within the cylinder to the outside. This results in the pressure build up on either side of the piston, making the Cylinder extends or retracts in the opposite direction. The Sliding bearing or the Wear ring accommodates side loads, prevents metal-to-metal contact and maintain the concentricity of the hydraulic seals. The external wiper or Scraper prevents penetration of dirt and foreign liquid into the hydraulic system and helps in keeping the contamination level to a minimum. Hydraulic cylinders also require static sealing solutions including O-rings and most often back-up rings.







    The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.

    We use high quanlity raw materials from Gemany and Japen.

    We also sell other brand of seals such as NOK,Parker,SKF,Hallite,PET ,YCC,NAK and so on .

Product Overview
Name: Rod Seal IDI UDO
Condition 100% New
Material: PU + NBR
Size: Standard Size or Custom Size
Application: Excavator Cylinder Rod
Hardness: 92degree
Temparature: -30 Degree To 120 Degree
Feature: Oil Resistance,Heat Resisitance,Durable,Pressure Resisitant
Certification: ISO 9001
Raw Material: HUNTSMAN of German+ZEON of Japan
OEM: Accpetable
vailablity: In Stock
Shipping: Express,By Air,By Sea



UDO Cylinder Rod Seal Excavator Spare Parts Sky blue 0

UDO Cylinder Rod Seal Excavator Spare Parts Sky blue 1

Application Chart:

UDO Cylinder Rod Seal Excavator Spare Parts Sky blue 2

Regular specifications
Part Name SIZE Part Name SIZE
IDI 40*55*9 IDI 115*130*10
IDI 45*60*9 IDI 110*130*10
IDI 50*65*9 IDI 120*140*10
IDI 55*70*9 IDI 55*75*12
IDI 60*75*9 IDI 60*80*12
IDI 65*80*9 IDI 65*85*12
IDI 70*85*9 IDI 70*90*12
IDI 75*90*9 IDI 75*95*12
IDI 80*95*9 IDI 80*100*12
IDI 85*100*9 IDI 85*105*12
IDI 90*105*9 IDI 90*110*12
IDI 95*110*9 IDI 95*115*12
IDI 100*115*9 IDI 100*120*12
IDI 105*120*9 IDI 105*125*12
IDI 110*125*9 IDI 110*130*12
IDI 115*130*9 IDI 115*135*12
IDI 120*135*9 IDI 120*140*12
IDI 50*63*10 IDI 130*150*12
IDI 55*68*10 IDI 100*120*15
IDI 55*70*10 IDI 105*125*15
IDI 60*73*10 IDI 110*130*15
IDI 60*75*10 IDI 120*140*15
IDI 65*78*10 IDI 50*60*6
IDI 65*80*10 IDI 55*65*6
IDI 70*83*10 IDI 60*70*6
IDI 70*85*10 IDI 65*75*6
IDI 75*88*10 IDI 70*80*6
IDI 75*90*10 IDI 75*85*6
IDI 80*93*10 IDI 80*90*6
IDI 80*95*10 IDI 50*60*8
IDI 85*100*10 IDI 55*65*8
IDI 90*105*10 IDI 60*70*8
IDI 95*110*10 IDI 65*75*8
IDI 100*115*10 IDI 70*80*8
IDI 105*120*10 IDI 75*85*8
IDI 110*125*10 IDI 80*90*8



Why Choose Us?

  • We are manufacturers and product direct sales.
  • Excellent and reliable production equipment and inspection equipment.
  • Many years of industry practical experience.
  • Excellent product research and development team.
  • Professional production technology.
  • High quality raw materials from Germany and Japan.

Factory View

UDO Cylinder Rod Seal Excavator Spare Parts Sky blue 3UDO Cylinder Rod Seal Excavator Spare Parts Sky blue 4UDO Cylinder Rod Seal Excavator Spare Parts Sky blue 5UDO Cylinder Rod Seal Excavator Spare Parts Sky blue 6UDO Cylinder Rod Seal Excavator Spare Parts Sky blue 7
