Product Details:
|
|
| Place of Origin: | CN |
|---|---|
| Brand Name: | GUKE |
| Model Number: | TNB151LU2 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1KITS |
| Price: | Negotiable |
| Packaging Details: | PP bag inside ,Carton box outside |
| Delivery Time: | 3-7 Days after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 kits per week |
|
Detail Information |
|||
| Material: | PU+NBR+PTFE | Color: | Ivory Gray Black |
|---|---|---|---|
| Part No: | 41561880D | Size: | Standard Size Custom Size |
| OEM: | Available | Feature: | Oil Resisitance Pressure Resisitant |
Product Description

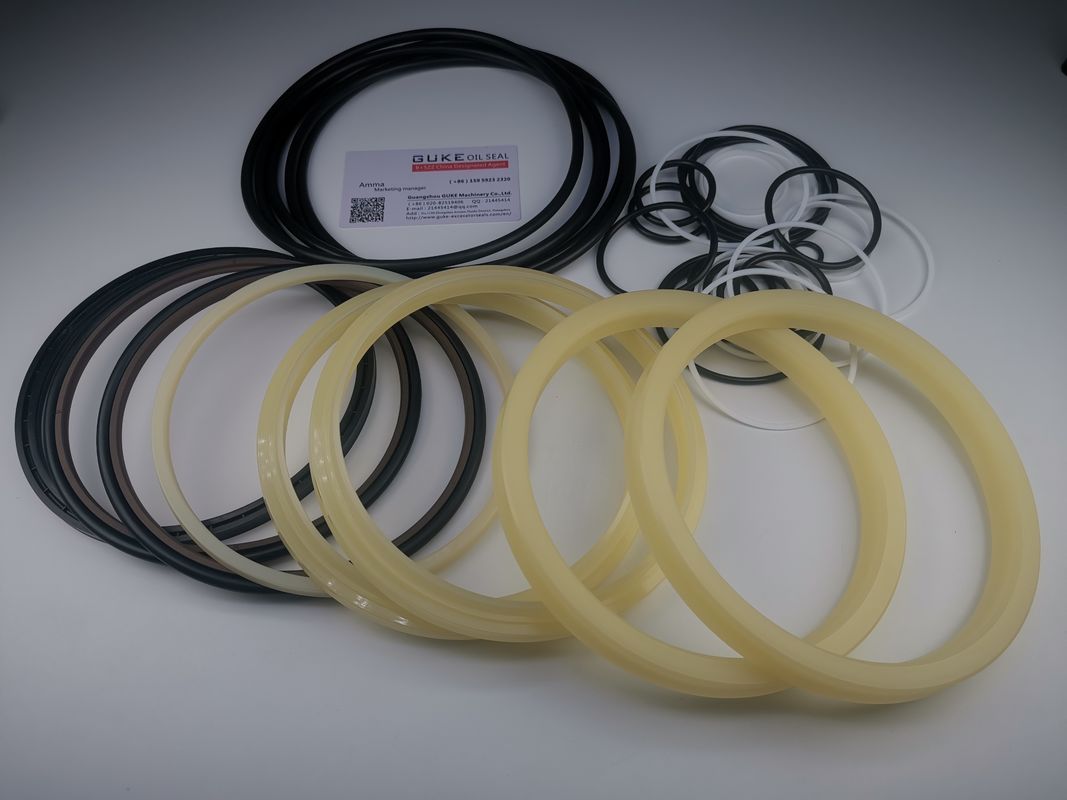

TOKU TNB151LU2 Hammer Breaker Repari Kit Seal Kit 41561880D
Related Brand
KRUPP, ATLAS-COPCO, NPK, FURUKAWA, D&A, TOKU, MSB, SOOSAN , DAEMO, TOPA, SANDVIK, KOMAC, RAMMER, MONTABELT, KONAN. and more.
GUKE MACHINERY specilialized in:
Hydraulic seal parts and seal kits, coupling o ring box for all kinds of machine type
And ,our Comany also supply:
Engine parts,hydraulic piston pump and hydraulic travel motor,Swing motor assembly and hydraulic componets parts,and hydraulic hammer breaker parts with piston,cylinder ,chisel,through bolt,side bolt ,top bush,front head bushing
We always try our best to all our customers and make it better and better,welcome!
Contaci:21445414@qq.com
Whatsapp+86 15959232320
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as NOK,Parker,SKF,Hallite,PET ,YCC,NAK and so on .
| Product Overview | |
| Name: | TOKU TNB151LU2 Breaker Seal kit |
| Condition | 100% New |
| Material: | PU+NBR+PTFE |
| Size: | Standard Size or Custom Size |
| Appliion: | Hydraulic Breaker Hammer Breaker Rock Breaker |
| Hardness: | 92degree |
| Temparature: | -30 Degree To 120 Degree |
| Feature: | Oil Resistance,Heat Resisitance,Pressure Resisitant |
| Certifiion: | ISO 9001 |
| Raw Material: | HUNTSMAN of German+ZEON of Japan |
| OEM: | Accpetable |
| vailablity: | In Stock |
| Shipping: | Express,By Air,By Sea |
Appliion Chart:
Part List
| Item | Part Code | Description | Q'ty | Item | Part Code | Description | Q'ty |
| 41561801D | CYLINDER CP | 1 | 40 | 131724250 | HEX SOCKET HEAD CAP SCREW | 10 | |
| 41561801C | CYLINDER CP | 1 | 131506010 | HEX BOLT | 10 | ||
| 1 | 415618011 | CYLINDER | 1 | 41 | 131313124 | WASHER | 0 |
| 415618010 | CYLINDER | 1 | 131313124 | WASHER | 10 | ||
| 2 | 131024010 | HELISERT | 6 | 42 | 131101034 | O-RING | 1 |
| 3 | 134912002 | HEX SOCKET FLANGE PLUG | 2 | 43 | 131121034 | BACK-UP RING | 1 |
| 41514366A | AIR CAP CP | 1 | 45 | 131101013 | O-RING | 2 | |
| 4 | 415143660 | AIR CAP | 1 | 46 | 131220150 | GAS SEAL | 1 |
| 5 | 130505028 | BALL | 1 | 47 | 131225150 | OIL SEAL | 1 |
| 6 | 130806014 | AIR CAP SPRING | 1 | 48 | 131230150 | SLIDE RING S | 2 |
| 8 | 415185030 | CYLINDER COVER | 1 | 49 | 131102029 | O-RING | 2 |
| 10 | 415693040 | PISTON | 1 | 50 | 131102129 | O-RING | 1 |
| 11 | 415618U30 | LOCK PIN | 1 | 51 | 131122026 | BACK-UP RING | 1 |
| 41560905E | CHISEL HOLDER CP | 1 | 52 | 131225158 | OIL SEAL | 2 | |
| 41560905D | CHISEL HOLDER CP | 1 | 53 | 131219158 | DUST SEAL | 2 | |
| 12 | 415609051 | CHISEL HOLDER | 1 | 55 | 131102029 | O-RING | 2 |
| 415609050 | CHISEL HOLDER | 1 | 56 | 131101034 | O-RING | 2 | |
| 13 | 134901104 | PLUG | 1 | 57 | 131121034 | BACK-UP RING | 2 |
| 14 | 131042015 | HELISERT | 4 | 58 | 131101045 | O-RING | 1 |
| 15 | 134901102 | PLUG | 4 | 59 | 131121045 | BACK-UP RING | 1 |
| 16 | 182136006 | O-RING PLUG | 1 | 62 | 131101049 | O-RING | 2 |
| 17 | 415609060 | CHISEL BUSHING | 1 | 63 | 131121049 | BACK-UP RING | 2 |
| 18 | 415148140 | CHISEL HOLDER BUSHING | 1 | 64 | 131102010 | O-RING | 1 |
| 19 | 136402011 | PLUG | 4 | 65 | 131122010 | BACK-UP RING | 1 |
| 20 | 415148250 | STOPPER PIN | 5 | 66 | 131108023 | O-RING | 1 |
| 21 | 130620030 | SPRING PIN | 1 | 67 | 131108038 | O-RING | 1 |
| 22 | 130613030 | SPRING PIN | 1 | 68 | 131108038 | O-RING | 1 |
| 23 | 135013002 | GREASE NIPPLE | 1 | 41514130K | GAS VALVE CP | 1 | |
| 24 | 415186100 | RETAINER PIN | 2 | 41514130J | GAS VALVE CP | 1 | |
| 25 | 136402011 | PLUG | 1 | 71A | 41514130L | GAS VALVE BODY CP | 1 |
| 26 | 415148250 | STOPPER PIN | 1 | 41514130G | GAS VALVE BODY CP | 1 | |
| 27 | 136402040 | RETAINER PIN PLUG | 4 | 71AC | 131101015 | O-RING | 1 |
| 29 | 415609130 | PACKING BUSHING | 1 | 71B | 41514132E | GAS VALVE PLUG CP | 1 |
| 31 | 415185161 | SIDE BOLT | 4 | 71BB | 131101004 | O-RING | 1 |
| 415185160 | SIDE BOLT | 4 | 72 | 136096254 | HOSE ADAPTER-IN (WITH O-RING) | 1 | |
| 32 | 136306016 | SIDE BOLT RING | 0 | 73 | 136096253 | HOSE ADAPTER-OUT (WITH O-RING) | 1 |
| 136306016 | SIDE BOLT RING | 4 | |||||
| 33 | 134206018 | SIDE BOLT NUT | 4 | 81 | 415186412 | MOIL TOOL (P) 135x1230L | 1 |
| 134206017 | SIDE BOLT NUT | 4 | 82 | 415186422 | BLUNT TOOL (E) 135x1230L | 0 | |
| 35 | 415147200 | CONTROL VALVE | 1 | 83 | 415186432 | CHISEL TOOL (F) 135x1230L | 0 |
| 36 | 415694210 | CONTROL VALVE BOX | 1 | ||||
| 37 | 415147221 | CONTROL VALVE CAP | 1 | 41561880D | SEAL KIT | 1 | |
| 38 | 415156230 | CHOKE PLUG | 1 | 41514780G | CONTROL VALVE SEAL KIT | 1 | |
| 39 | 134912002 | HEX SOCKET FLANGE PLUG | 2 |
