Name: WNMG080412-QM Indexable Inserts For Turning Trigon Type Negative Inserts
Brand: Guangzhou Guke Construction Machinery Co., Ltd.
SKU: WNMG8412-QM
Availability: InStock

Brand Name:	GUKE
Model Number:	WNMG8412-QM
MOQ:	10 PCS
Price:	Negotiate
Packaging Details:	PP bag inside ,Carton box outside
Payment Terms:	T/T ,Western Union ,Paypal, Xtransfer

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO 9001

Supply Ability:

1000pcs per week

Highlight:

Trigon Type Indexable Inserts

WNMG080412-QM Indexable Inserts

turning Indexable Inserts

Product Description

Product Overview
Name:	Turning Inserts WNMG080412
Blade back angle:	Negative
Material:	Tungsten carbide
Processing materials:	Steel, Alloy Steel
Processing requirements:	Rough Machining, Semi-finishing,
Processing method:	continuous processing, intermittent processing
Coat:	MT-TiCN,Al2O3,TiN
Blade Groove Shape:	QM Groove
Feature:	long-term and intermittent cutting, durable, corrosion-resistant,
Certification:	ISO 9001
vailablity:	In Stock
Shipping:	Express,By Air,By Sea

Chipbreaker Selection Inserts :QM

Semi-finish machining of common steel and alloy steel.
Stepped and wavy cam design for wider chipbreakage.

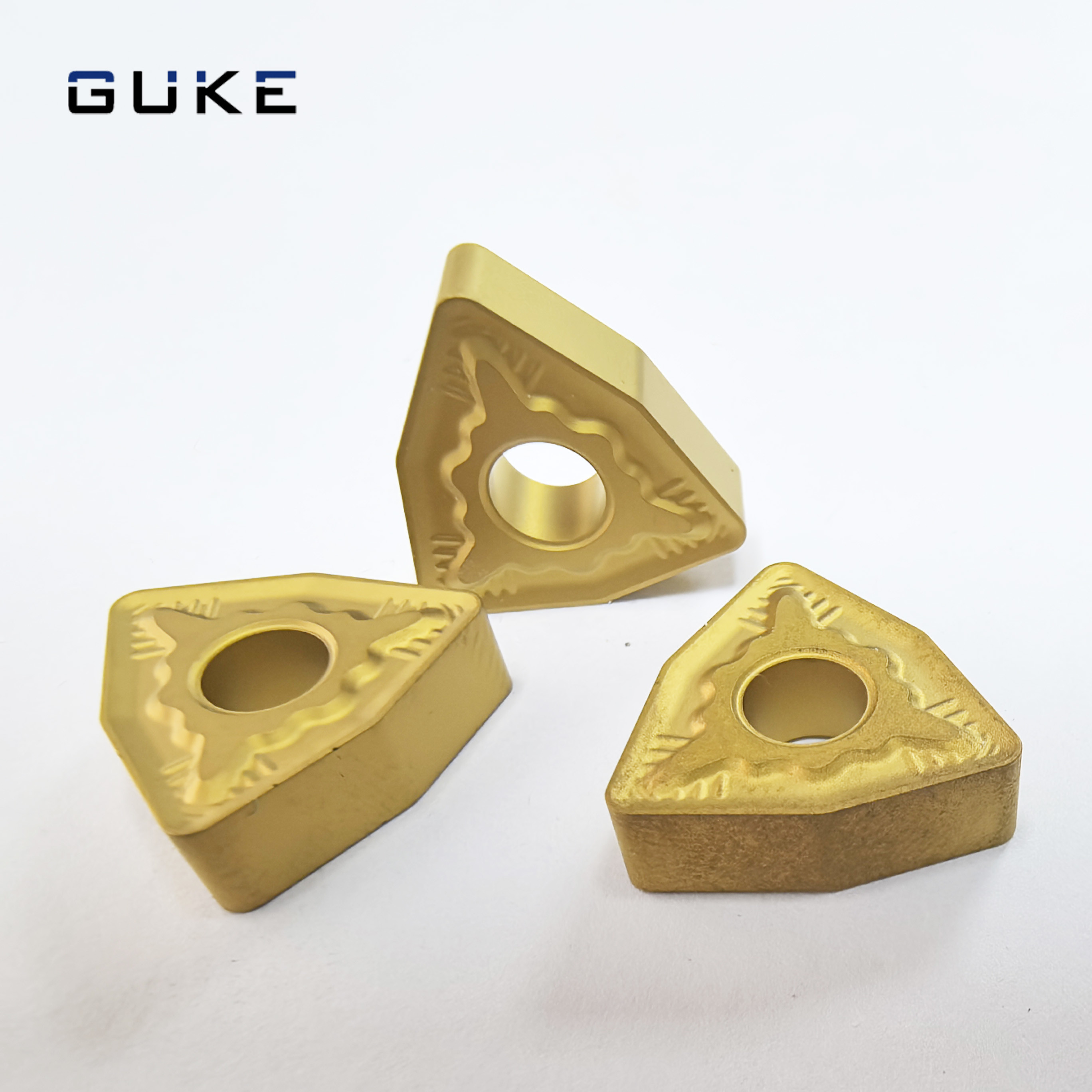

WNMG080412-QM Indexable Inserts For Turning Trigon Type Negative Inserts 0

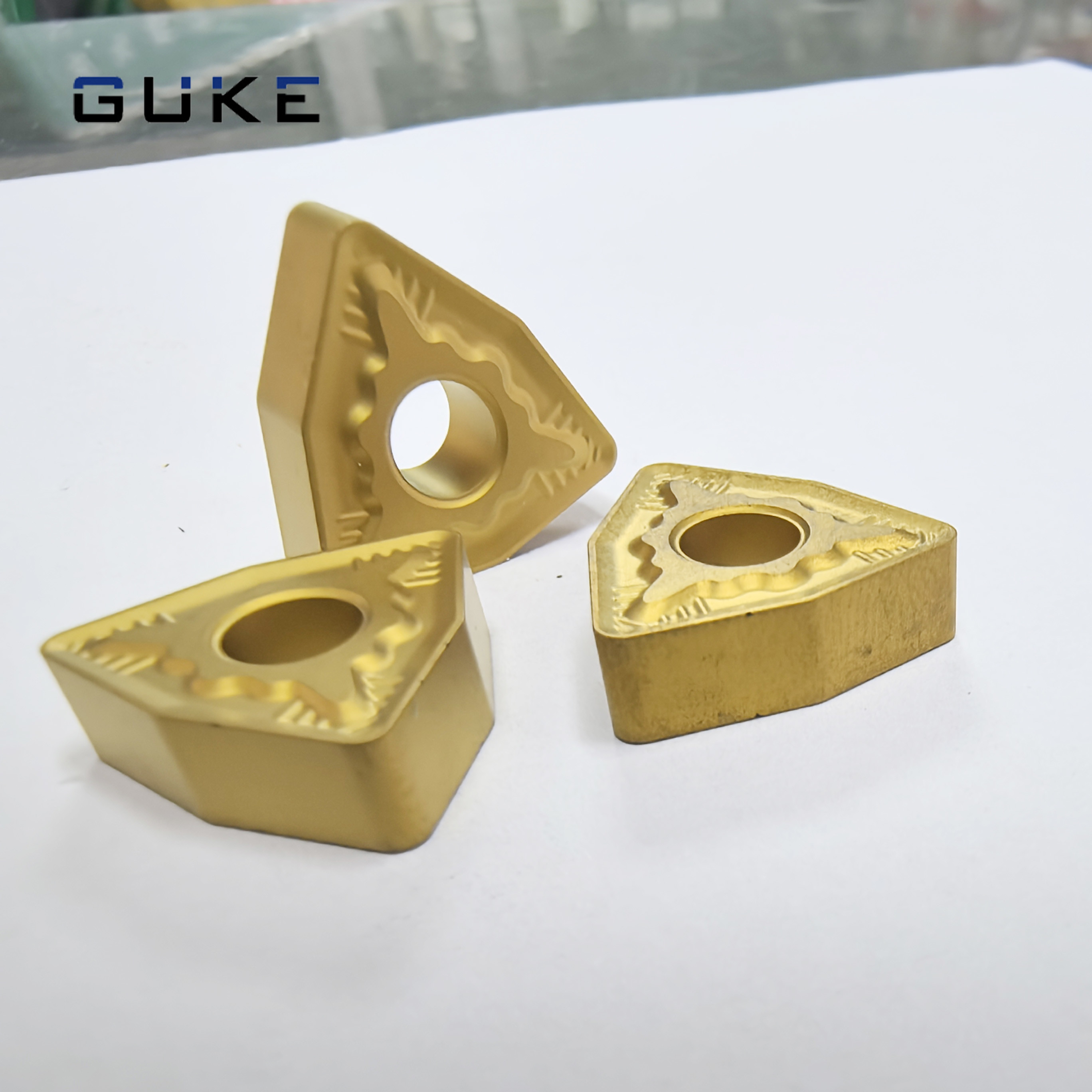

WNMG080412-QM Indexable Inserts For Turning Trigon Type Negative Inserts 1

WNMG080412-QM Indexable Inserts For Turning Trigon Type Negative Inserts 2

NAME	SIZE(mm)
NAME	LE	IC	S	D1	RE
WNMG060404-QM	6.5	9.525	4.76	3.81	0.4
WNMG060408-QM	6.5	9.525	4.76	3.81	0.8
WNMG060412-QM	6.5	9.525	4.76	3.81	1.2
WNMG080404-QM	8.7	12.7	4.76	5.16	0.4
WNMG080408-QM	8.7	12.7	4.76	5.16	0.8
WNMG080412-QM	8.7	12.7	4.76	5.16	1.2
WNMG080416-QM	8.7	12.7	4.76	5.16	1.6
